Adjustable Router Bit Ø163 | Wood Router Bit | Hand-Fed Router Bit

Adjustable grooving cutter Ø163 mm for precise grooving in wood

The adjustable grooving cutter was developed for professional applications in woodworking, interior construction, as well as window, door, and furniture manufacturing. The groove width can be adjusted quickly and precisely using spacer rings.

The high-strength aluminum body ensures a low weight while providing high stability and excellent running characteristics. The high-quality carbide insert plates have four usable cutting edges and ensure a long service life as well as clean cut surfaces.

The separately mounted chip breakers produce short, controlled chips and significantly improve chip removal.

Advantages

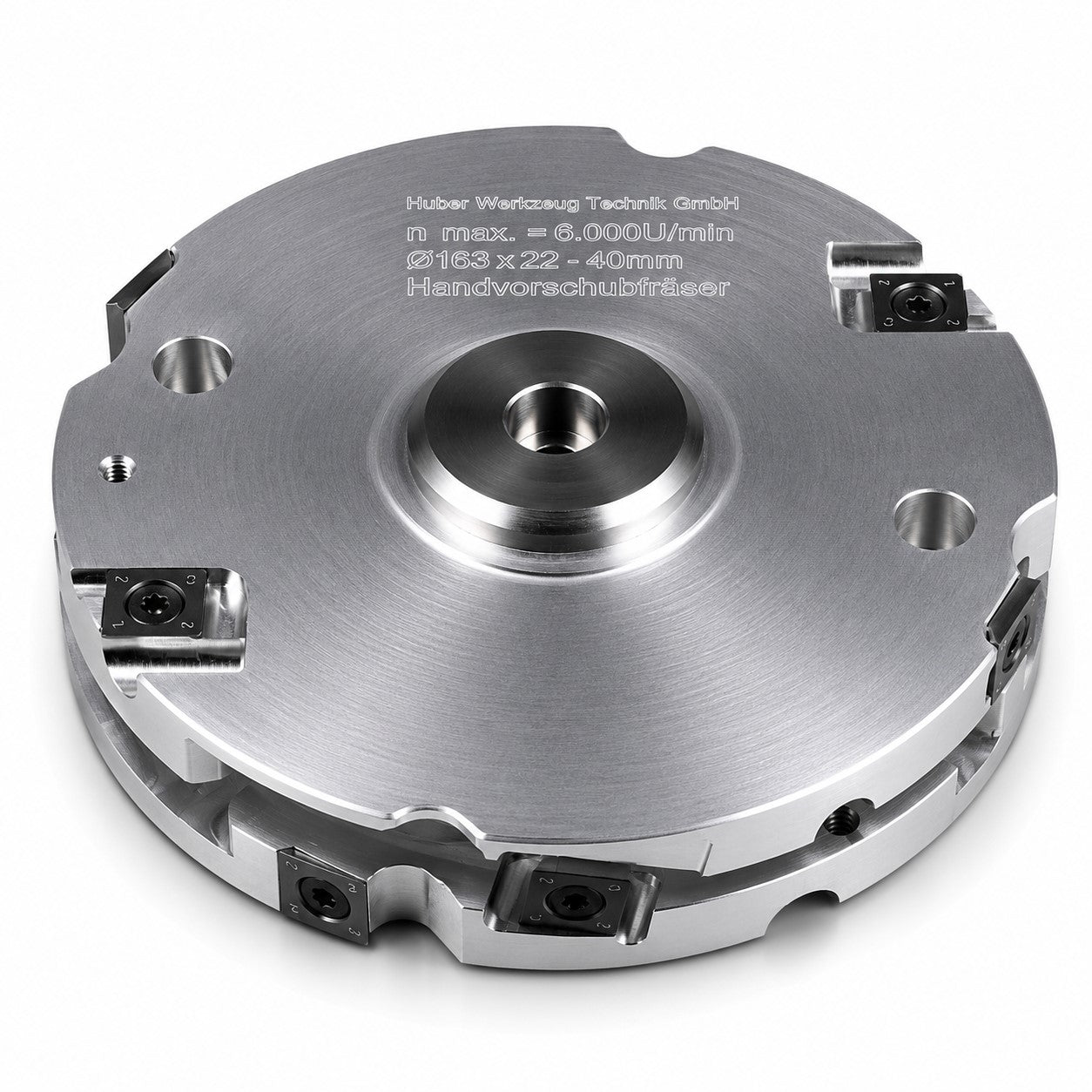

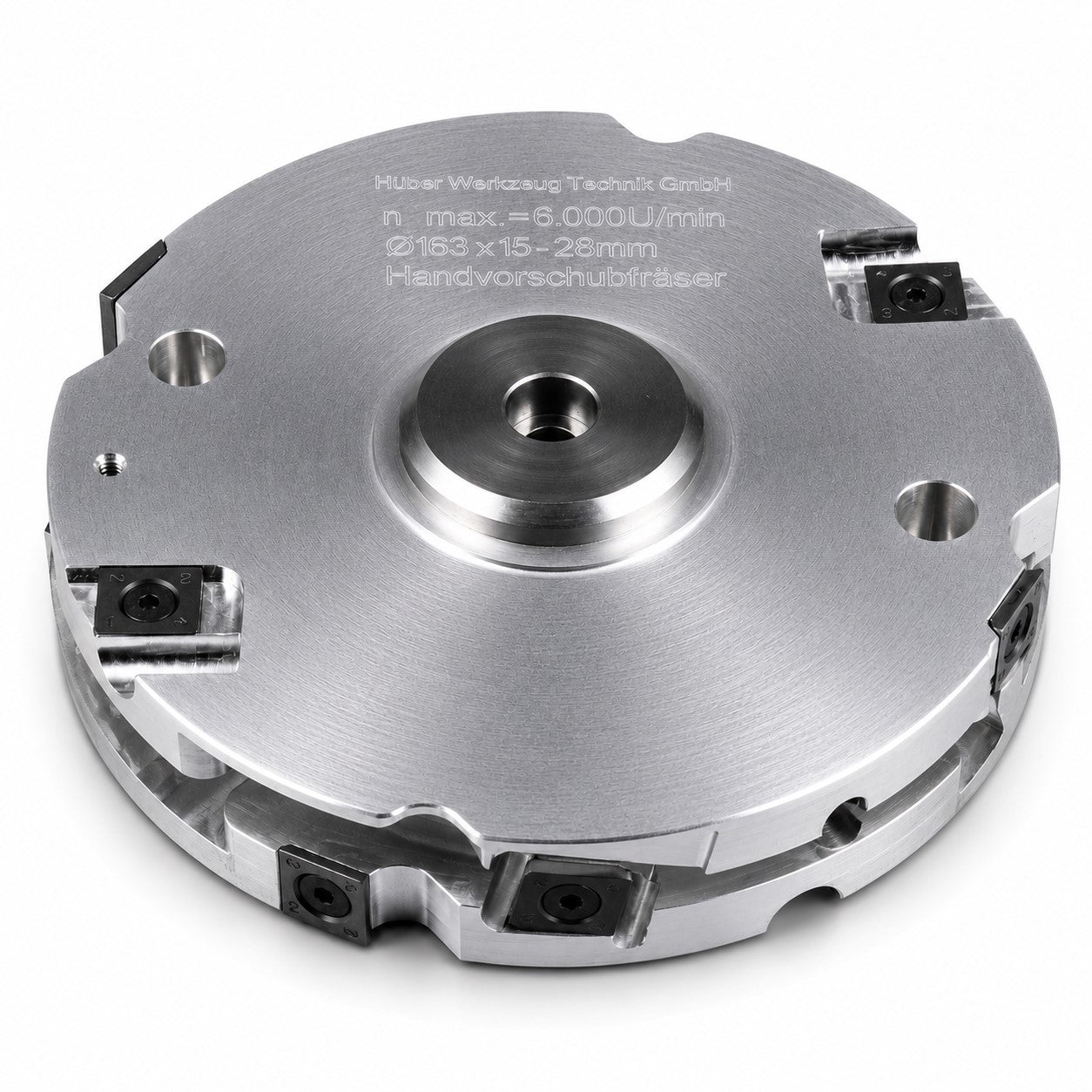

✔ Adjustable groove width from 15–28 mm or 22-40mm depending on the version

✔ Adjustment in 1-mm increments

✔ Ø163 mm cutter diameter

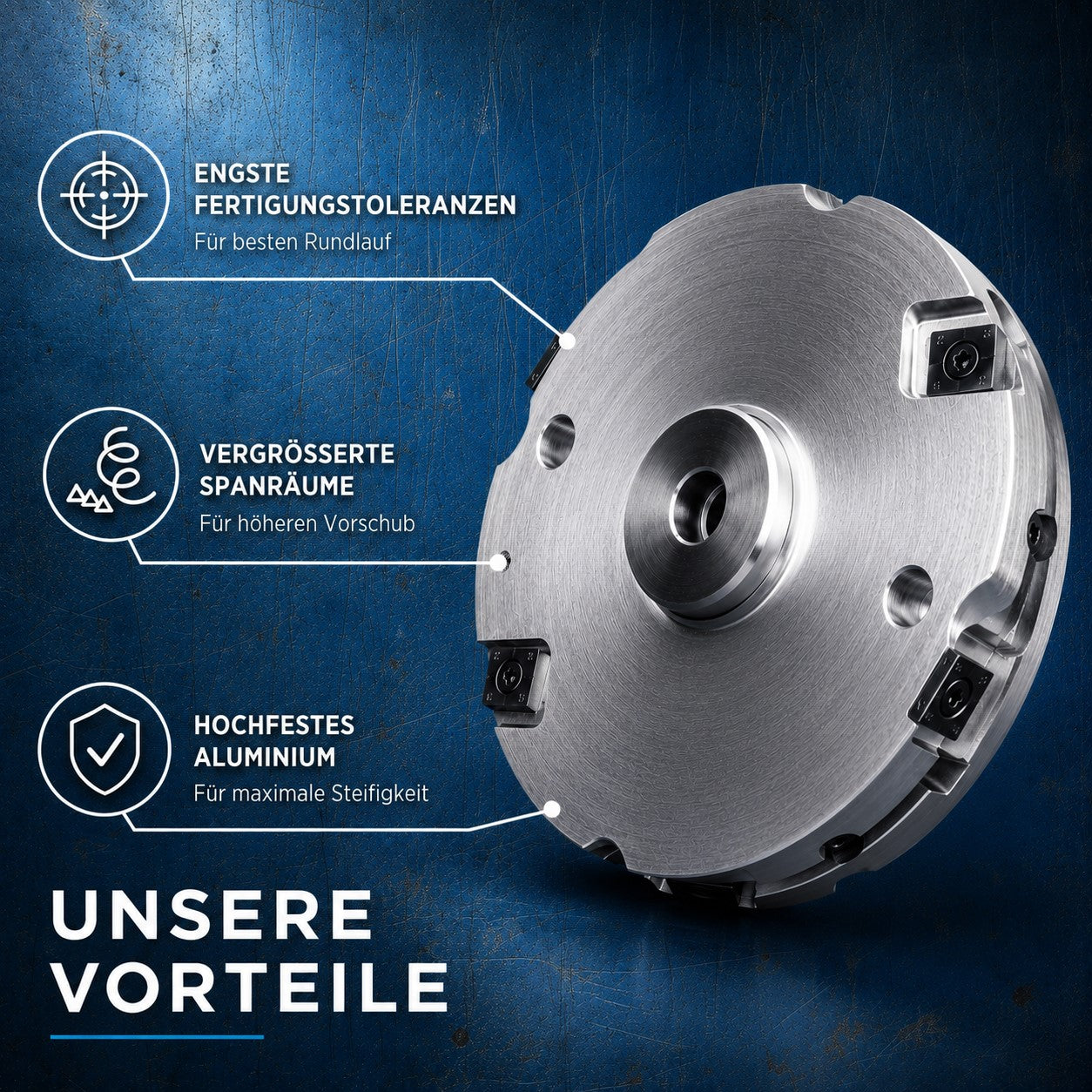

✔ High-strength aluminum body

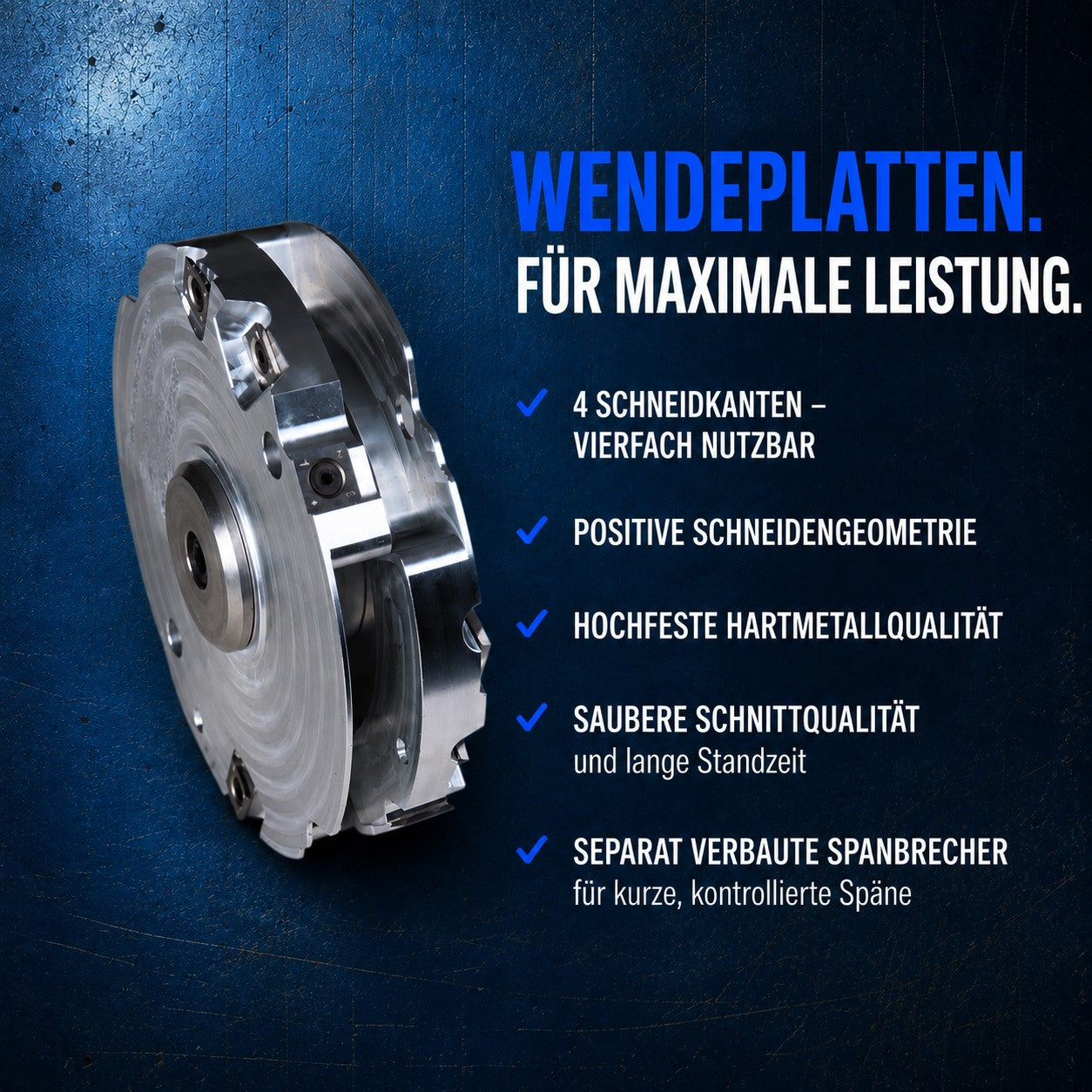

✔ 4-sided usable carbide insert plates

✔ Positive cutting geometry

✔ Separately installed chip breakers

✔ Very clean cut quality

✔ Long service life

✔ Precision-engineered

Technical Data

• Cutter diameter: Ø163 mm

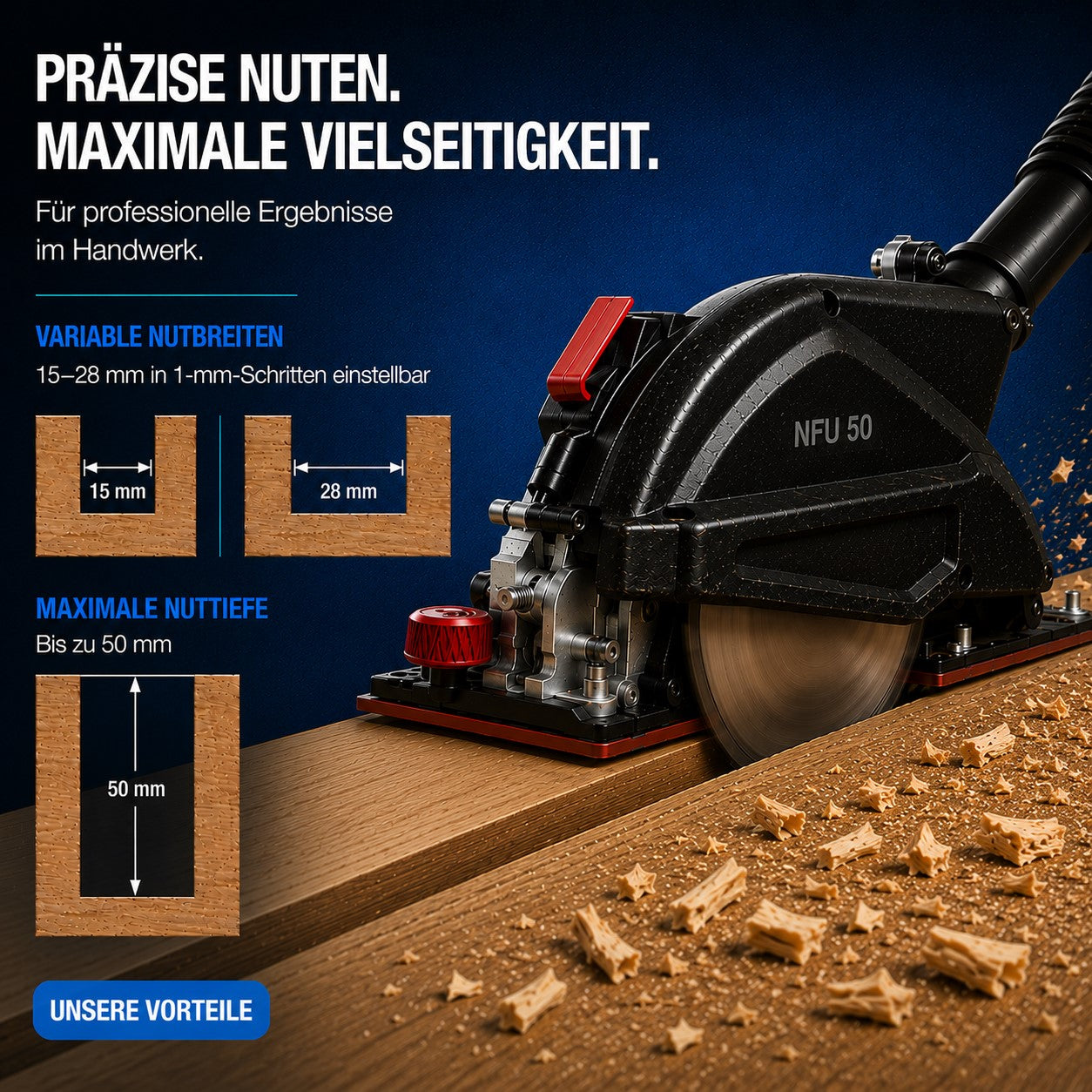

• Adjustment range: 15–28 mm depending on the version

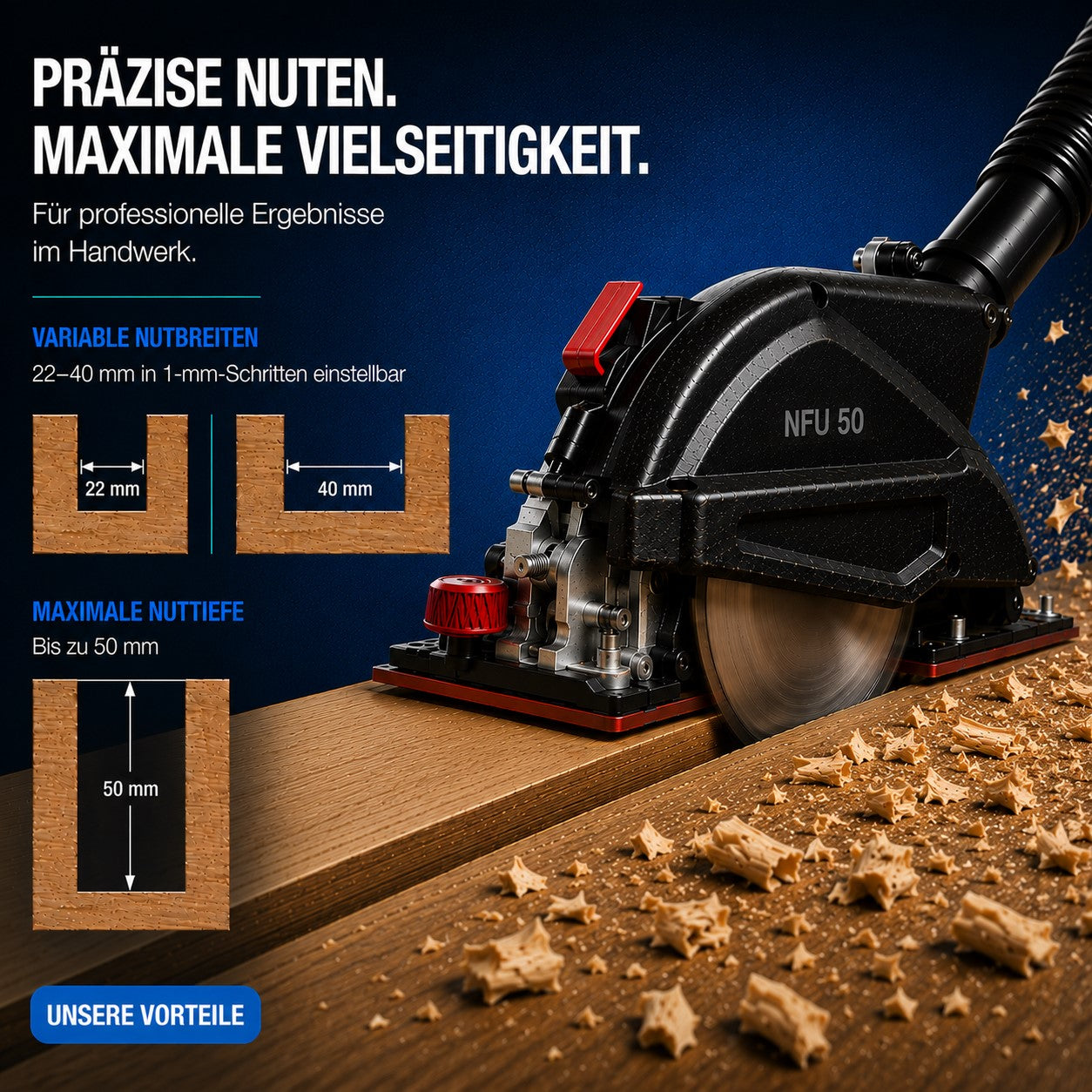

• Adjustment range: 22-40 mm depending on the version
• Adjustment: 1-mm increments
• Maximum groove depth: approx. 50 mm

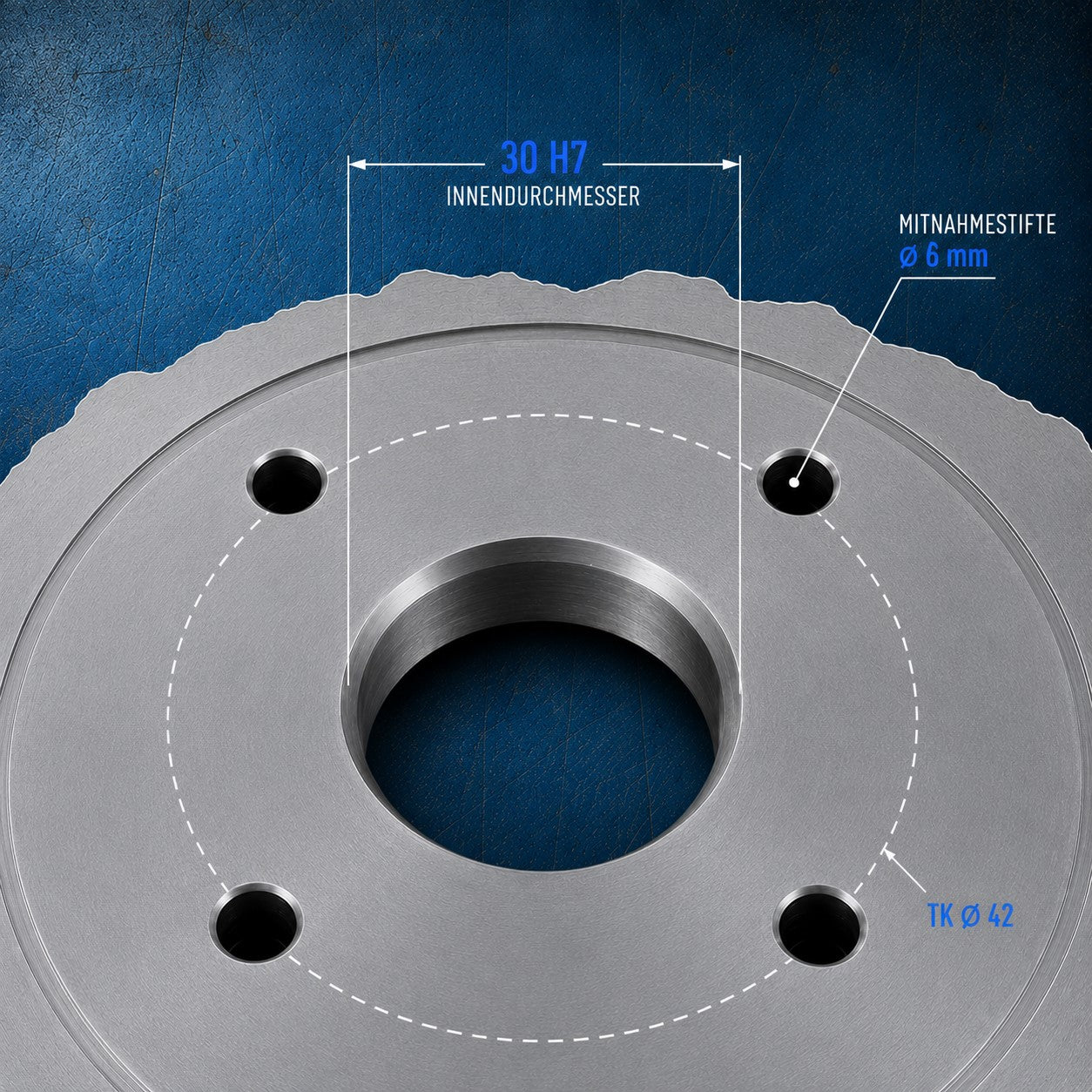

• Mounting hole: 30 H7
• Drive holes: Ø6.3 mm
• Bolt circle: Ø42 mm
• Body: Aluminum
• Cutting material: Carbide (WC)
• Cutting edges per insert plate: 4
• Standard insert plates 12x12x2.2mm, 35°

Scope of Delivery

• Fully assembled adjustable grooving cutter

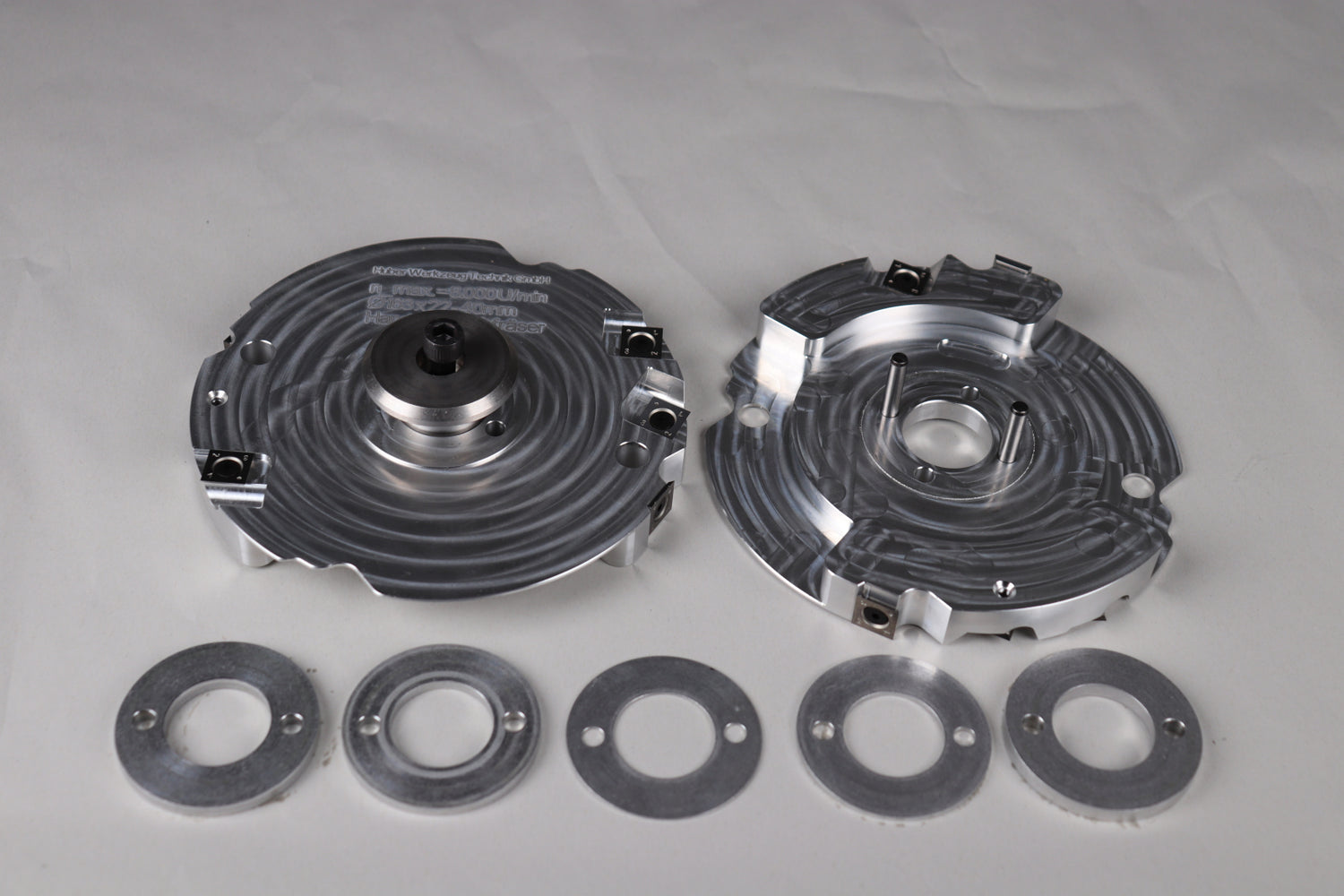

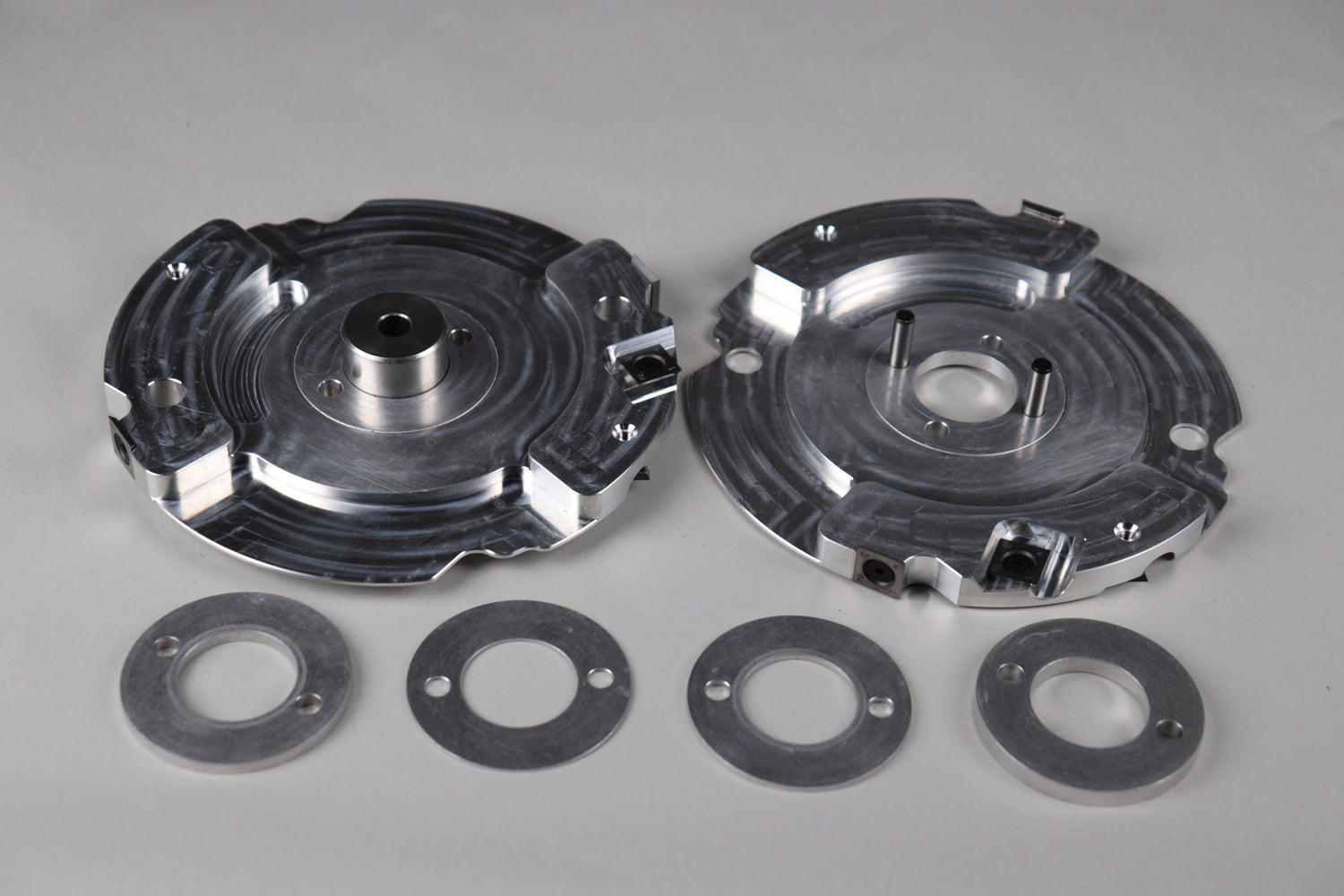

• Spacer rings
• Carbide insert plates
• Chip breakers

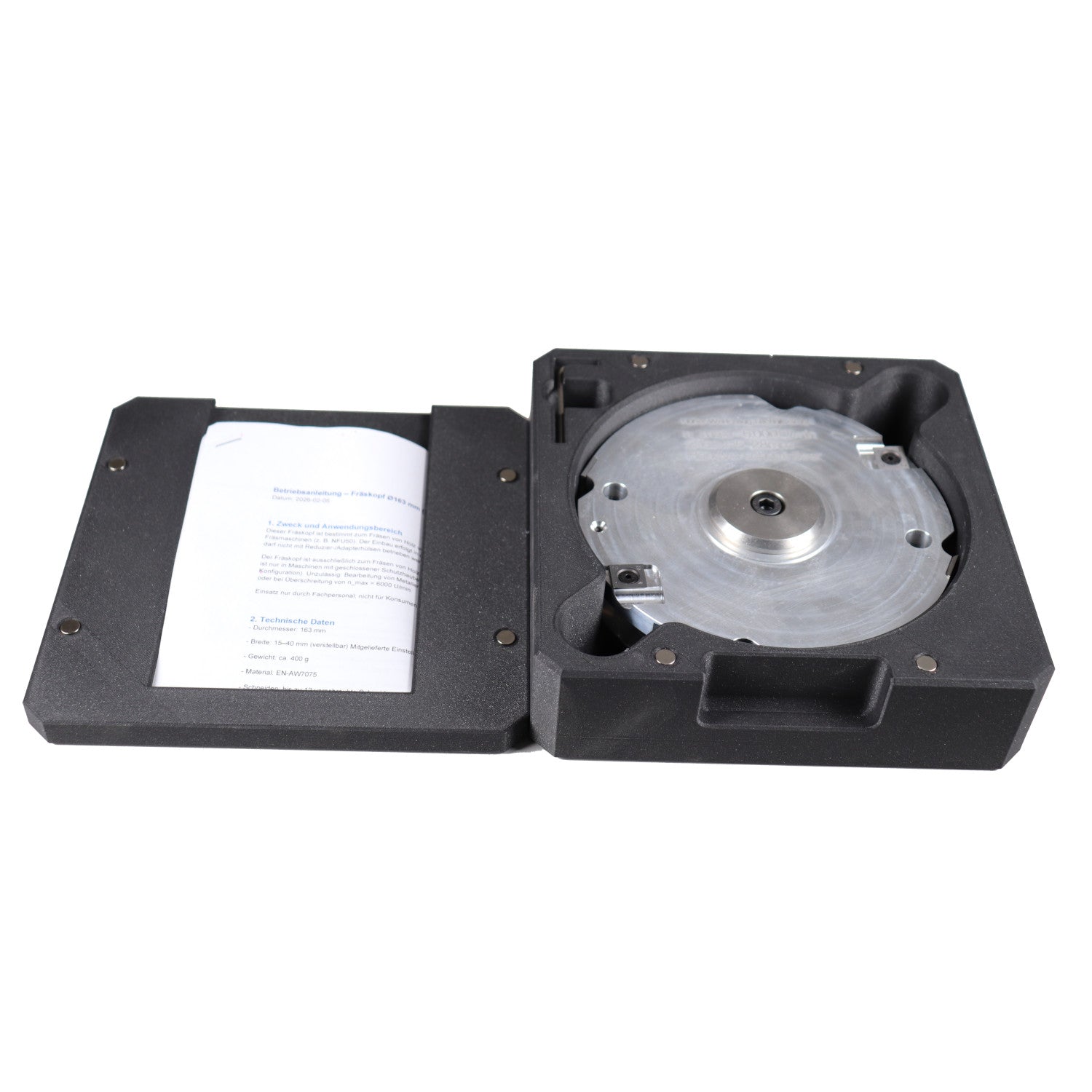

• High-quality storage box

Compatibility

Suitable for machines with

• Mounting 30 H7
• Drive holes Ø6 mm
• Bolt circle Ø42 mm

Suitable for machines such as the Mafell NFU 50.
