Left-hand tap, fine thread, machine tap, passage LH
Description
Description
Stock number: 1072 - 1087

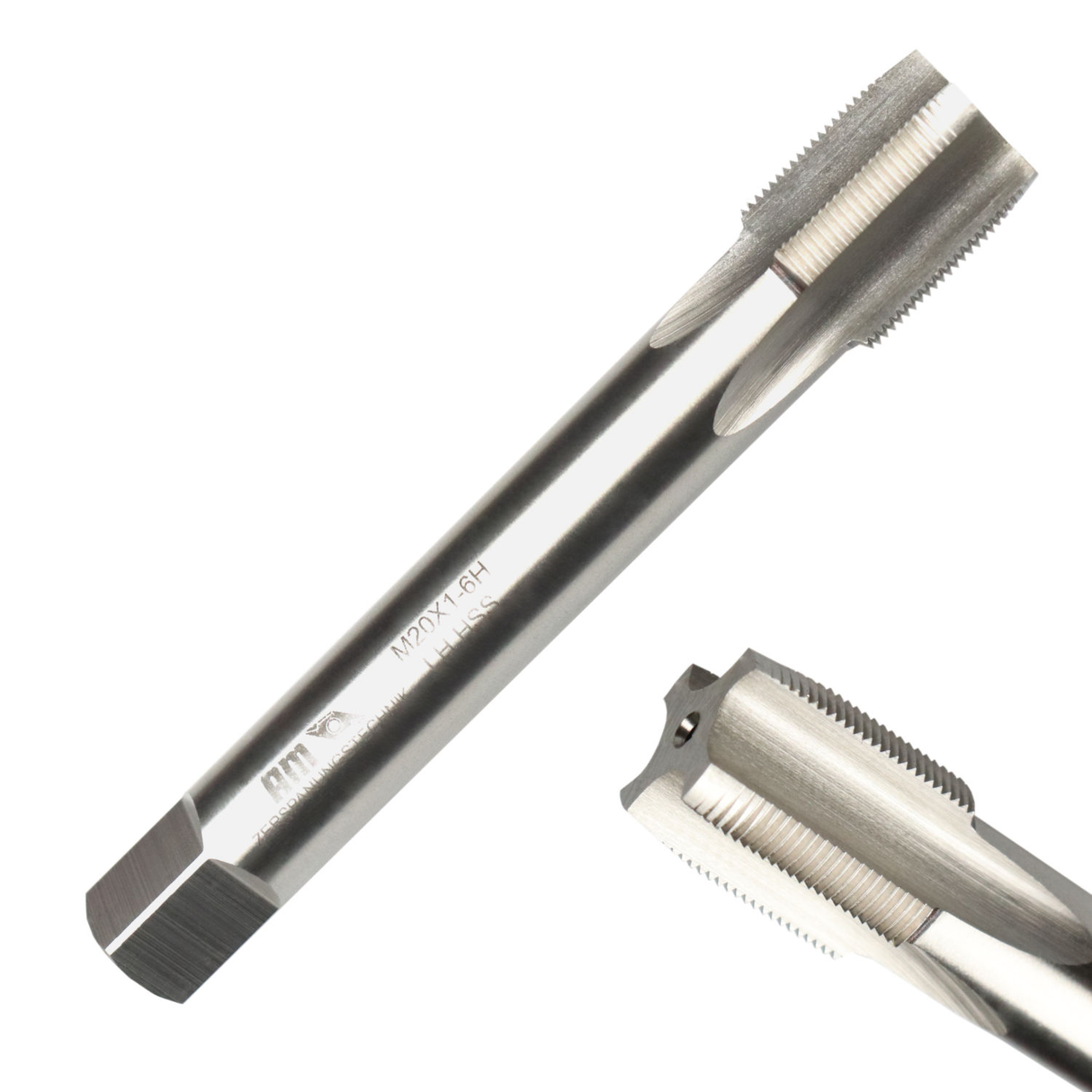

Fine tap left M3x0.35 - M36x2 LH
Machine tap with tolerance 6H.
Metric thread with a flank angle of 60°.
Through tap for tapping through holes.

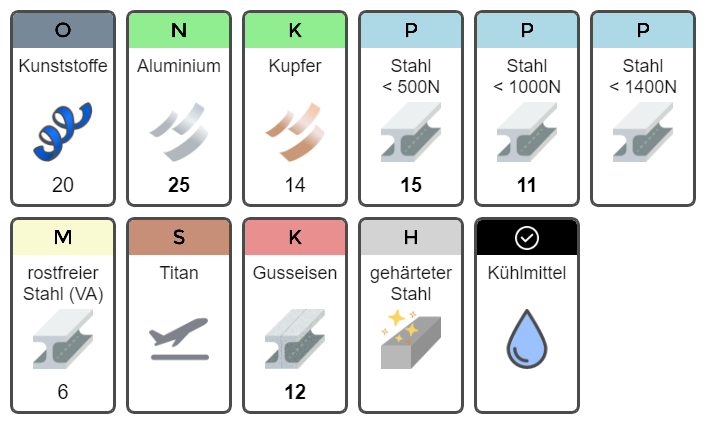

Cutting data Vc m/min:

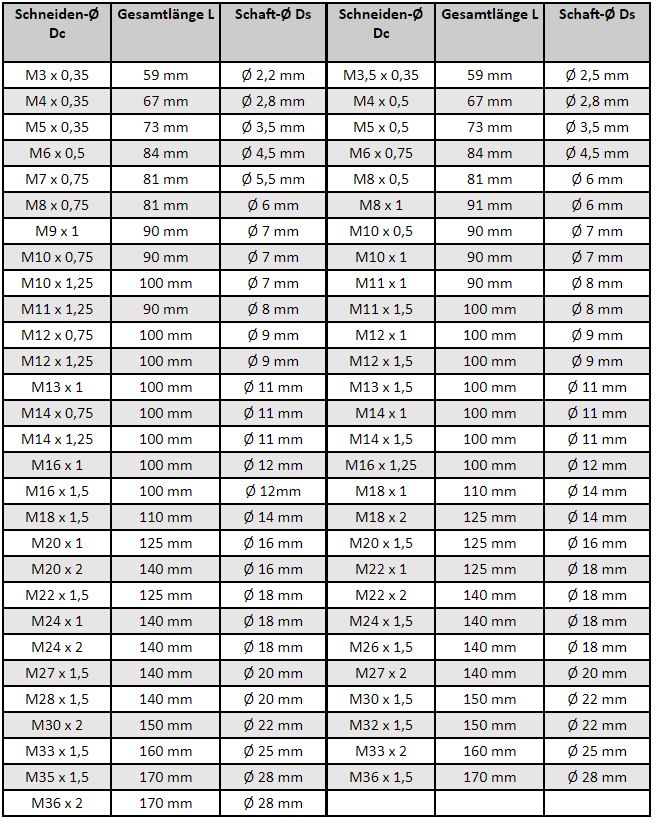

MF tap LH
|

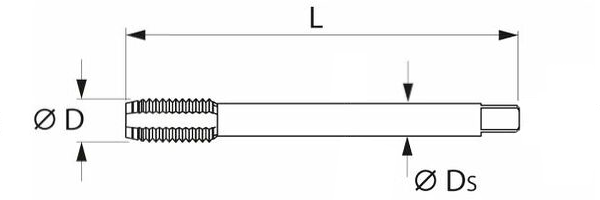

Cutting Ø Dc |
Total length L |
Shank Ø Ds |
Cutting Ø Dc |
Total length L |
Shank Ø Ds |
|
M3x0.35 |
59mm |
Ø 2.2mm |
M3.5x0.35 |
59mm |
Ø 2.5mm |
|
M4x0.35 |
67mm |
Ø 2.8mm |
M4x0.5 |
67mm |
Ø 2.8mm |
|
M5x0.35 |
73mm |
Ø 3.5mm |
M5x0.5 |
73mm |
Ø 3.5mm |
|
M6x0.5 |
84mm |
Ø4.5mm |
M6x0.75 |
84mm |
Ø4.5mm |
|
M7x0.75 |
81mm |
Ø5.5mm |
M8x0.5 |
81mm |
Ø 6mm |
|
M8x0.75 |
81mm |
Ø 6mm |
M8x1 |
91mm |
Ø 6mm |
|
M9x1 |
90mm |
Ø 7mm |
M10x0.5 |
90mm |
Ø 7mm |
|
M10x0.75 |
90mm |
Ø 7mm |
M10x1 |
90mm |
Ø 7mm |
|
M10x1.25 |
100mm |
Ø 7mm |
M11x1 |
90mm |
Ø 8mm |
|
M11x1.25 |
90mm |
Ø 8mm |
M11x1.5 |
100mm |
Ø 8mm |
|
M12x0.75 |
100mm |
Ø 9mm |
M12x1 |
100mm |
Ø 9mm |
|
M12x1.25 |
100mm |
Ø 9mm |
M12x1.5 |
100mm |
Ø 9mm |
|
M13x1 |
100mm |
Ø 11mm |
M13x1.5 |
100mm |
Ø 11mm |
|
M14x0.75 |
100mm |
Ø 11mm |
M14x1 |
100mm |
Ø 11mm |
|
M14x1.25 |
100mm |
Ø 11mm |
M14x1.5 |
100mm |
Ø 11mm |
|
M16x1 |
100mm |
Ø 12mm |
M16x1.25 |
100mm |
Ø 12mm |
|
M16x1.5 |
100mm |
Ø 12mm |
M18x1 |
110mm |
Ø14mm |
|
M18x1.5 |
110mm |
Ø14mm |
M18x2 |
125mm |
Ø14mm |
|
M20x1 |
125mm |
Ø16mm |
M20x1.5 |
125mm |
Ø16mm |
|
M20x2 |
140mm |
Ø16mm |
M22x1 |
125mm |
Ø 18mm |
|
M22x1.5 |
125mm |
Ø 18mm |
M22x2 |
140mm |
Ø 18mm |
|
M24x1 |
140mm |
Ø 18mm |
M24x1.5 |
140mm |
Ø 18mm |
|
M24x2 |
140mm |
Ø 18mm |
M26x1.5 |
140mm |
Ø 18mm |
|
M27x1.5 |
140mm |
Ø 20mm |
M27x2 |
140mm |
Ø 20mm |
|
M28x1.5 |
140mm |
Ø 20mm |
M30x1.5 |
150mm |
Ø 22mm |
|
M30x2 |
150mm |
Ø 22mm |
M32x1.5 |
150mm |
Ø 22mm |
|
M33x1.5 |
160mm |
Ø 25mm |
M33x2 |
160mm |
Ø 25mm |
|
M35x1.5 |
170mm |
Ø28mm |
M36x1.5 |
170mm |
Ø28mm |
|
M36x2 |
170mm |
Ø28mm |
