am-zerspanungstechnik | SKU: 12052021_0205

Solid carbide end mills Solid carbide end mills TiAlN HPC

Name: Solid carbide end mills Solid carbide end mills TiAlN HPC
Brand: am-zerspanungstechnik
SKU: 12052021_0205
Price: 3.99 EUR
Availability: InStock

€3,99

Tax included

Guarantee & Quality

We guarantee our customers the highest quality and longevity.

Shipment

Depending on the customer location, shipping takes place after 1-2 business days .
Orders over €130 receive tracking.

Description

Stock number: 197 - 202

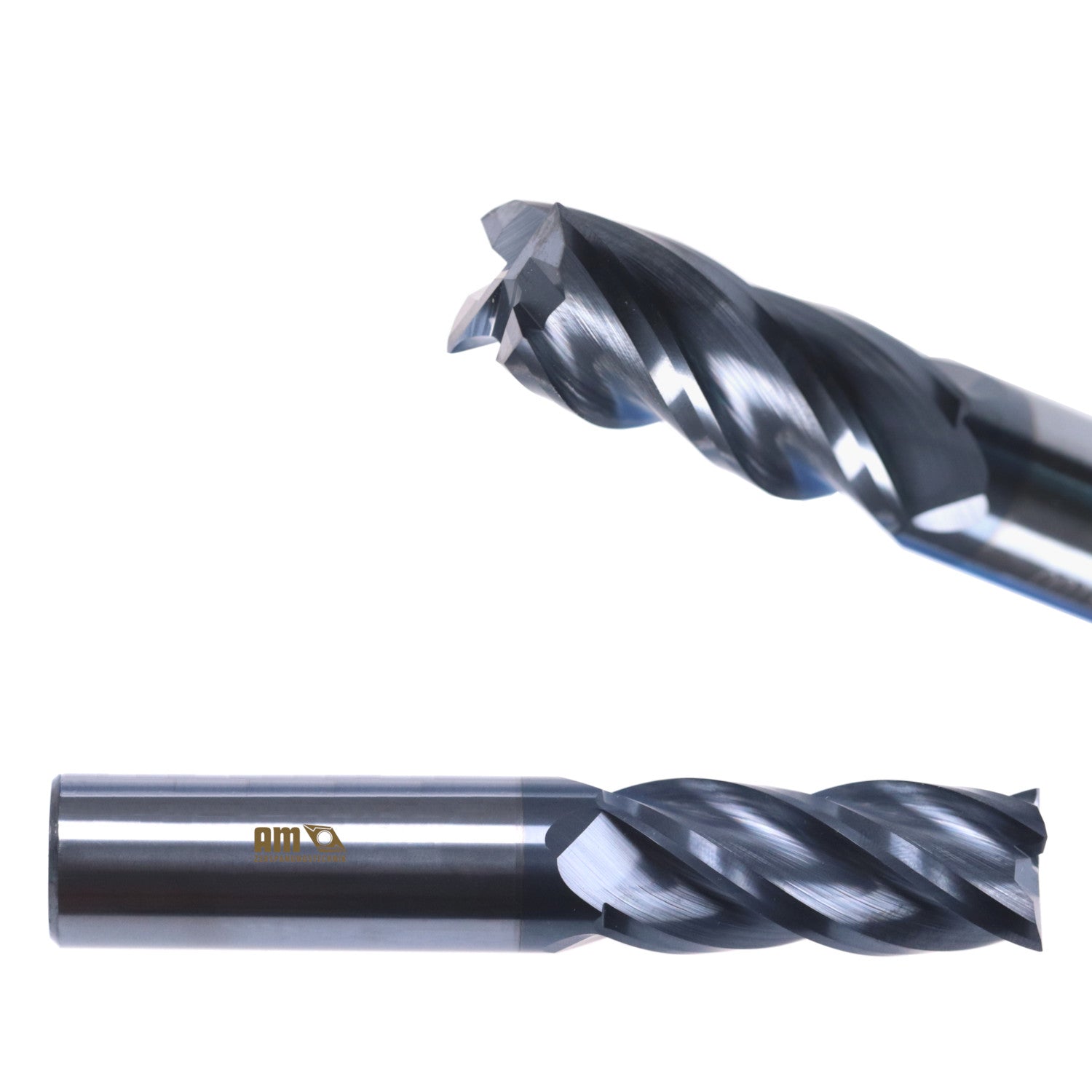

AM-Zerspanungstechnik solid carbide end mill | High-quality solid carbide milling cutter | TiAlN HPC | Available in sizes Ø1-20mm

🚀 HIGH PERFORMANCE | Excellent workmanship and sharp cutting edges lead to perfect results. Solid carbide with TiAlN coating for extreme heat and oxidation resistance.

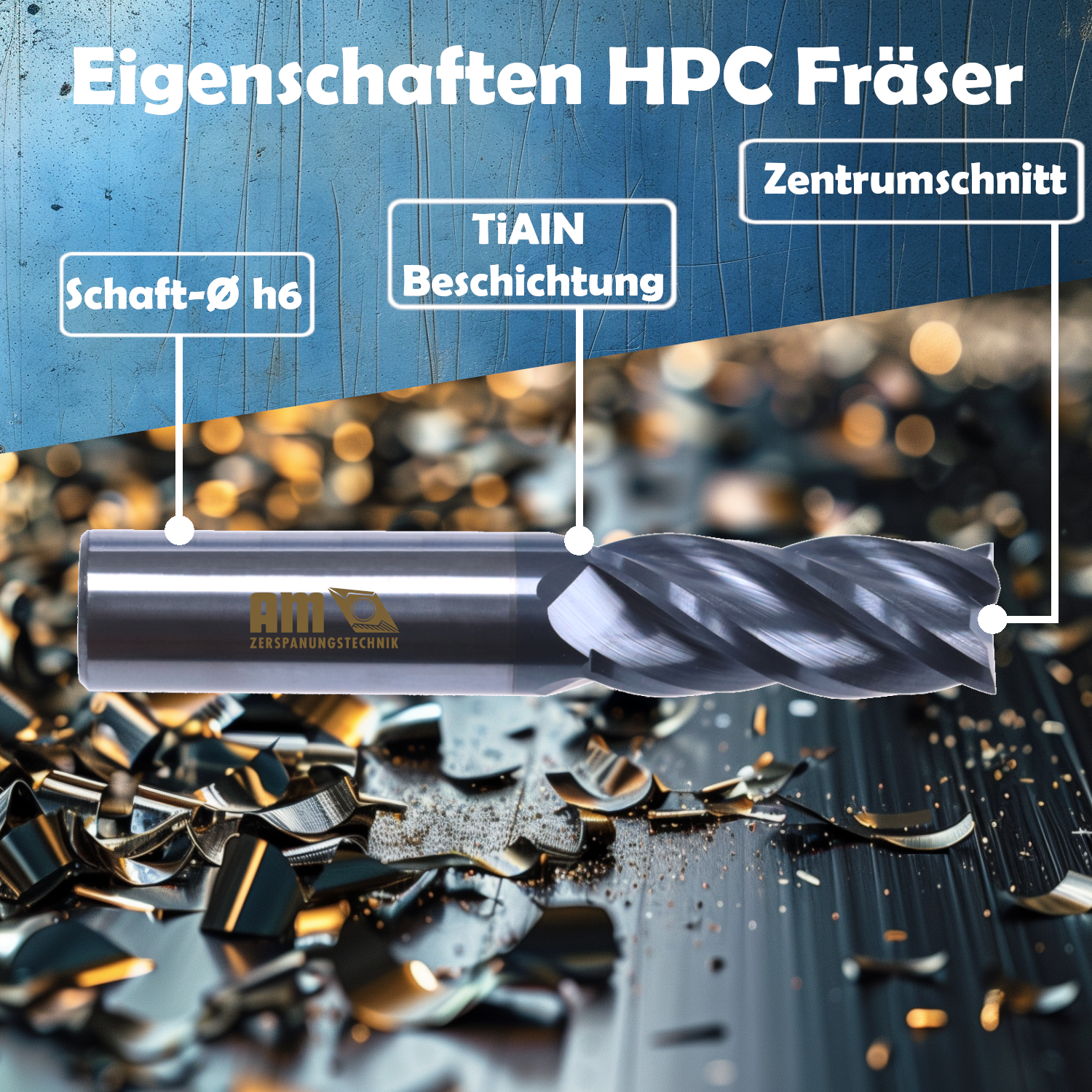

💎 ABSOLUTE PRECISION | Our milling cutters are subject to the strictest quality criteria. The shank diameter has a tolerance of 6h, and the carbide cutters have 4 teeth.

🔧 MAIN FUNCTION | For milling contours, grooves, face milling, grooving holes, and plunging into material. Various diameters with different cutting edge lengths.

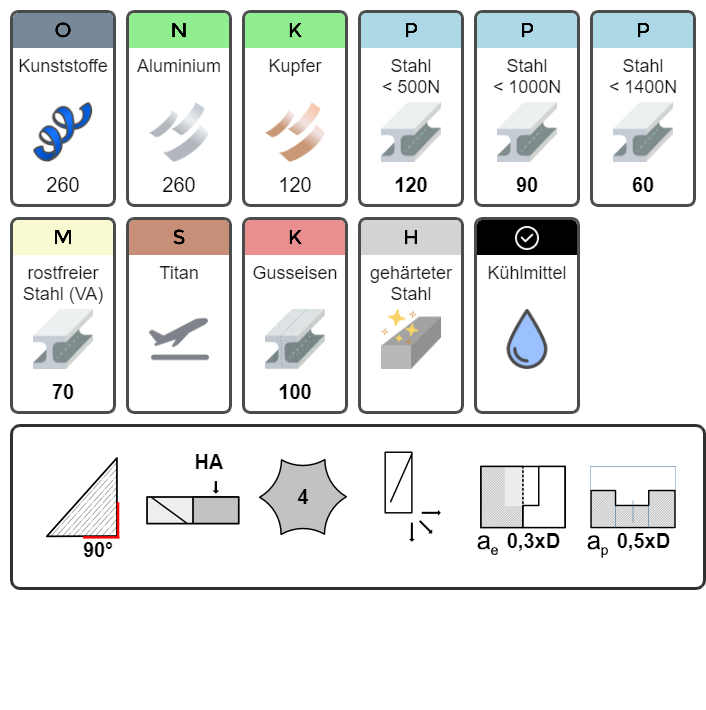

🔩 APPLICABLE MATERIALS | Suitable for all common materials, such as alloy steel, cast iron, cast steel, aluminum and other metallic and non-metallic materials.

👑 100% PREMIUM QUALITY | AM-Zerspanungstechnik stands for brand quality, reliable delivery, and service. We answer all questions and offer a hassle-free return process.

Solid carbide end mills are high-quality tools and are characterized by their high performance. They are particularly suitable for use at high speeds and high loads.
The slot milling cutters or groove milling cutters are used as CNC milling cutters and also on manual milling and lathes.

The TiAlN coating is known for its hardness and durability and offers consistently high quality in every machining operation.

Overall, solid carbide TiAlN end mills have excellent performance and long service life and are suitable for a wide range of metalworking applications.

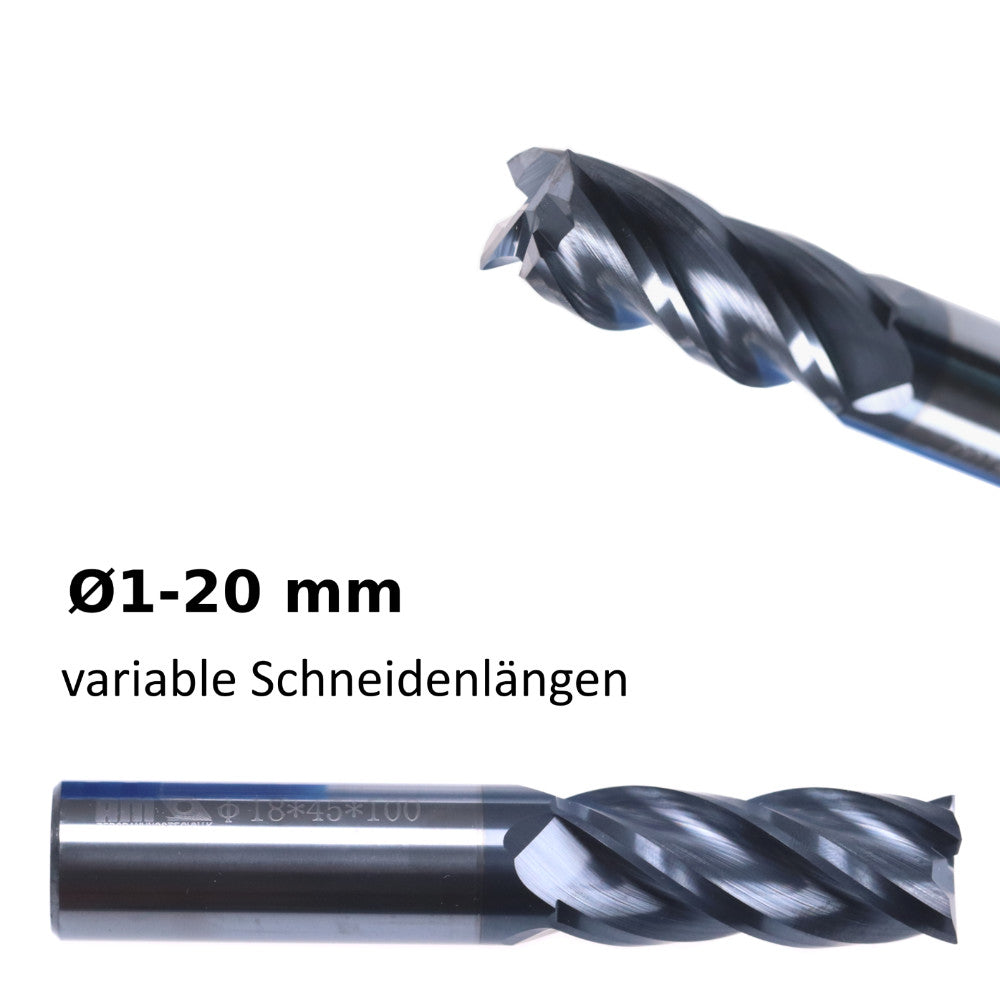

Our cutters are available in the following diameters:
1mm | 2mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 11mm | 12mm | 13mm | 14mm | 16mm | 18mm | 20mm

suitable for:

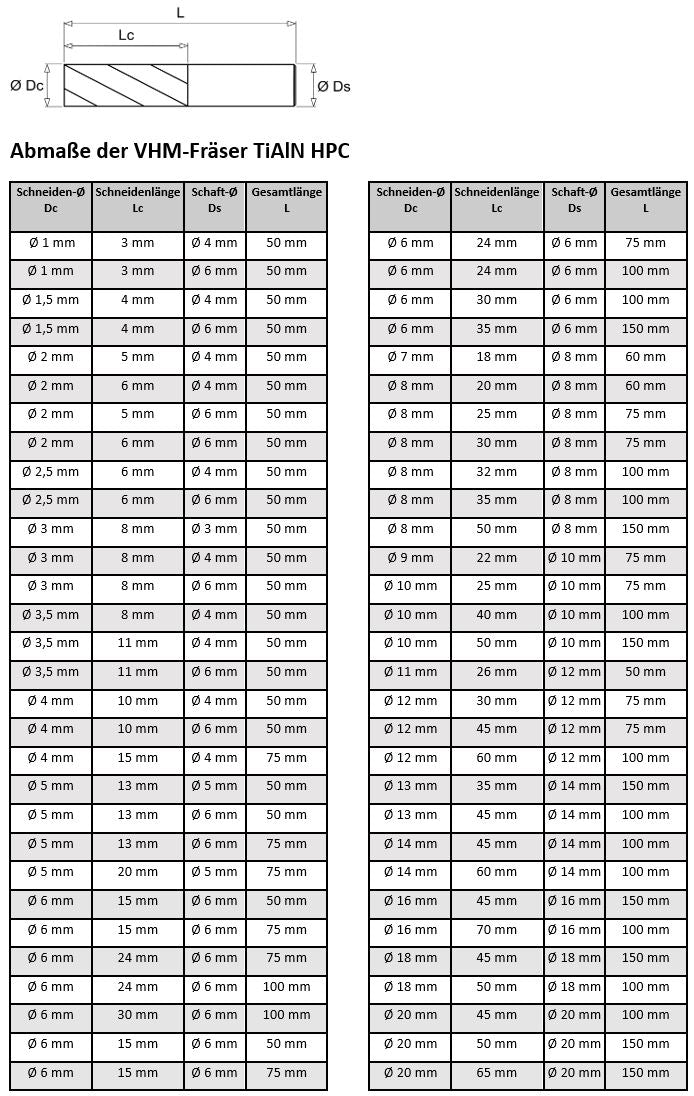

Dimensions:

Cutting diameter Dc	Cutting length Lc	Shaft diameter Ds	Total length L
Ø 1 mm	3 mm	Ø 4 mm	50 mm
Ø 1 mm	3 mm	Ø 6 mm	50 mm
Ø 1.5 mm	4 mm	Ø 4 mm	50 mm
Ø 1.5 mm	4 mm	Ø 6 mm	50 mm
Ø 2 mm	5 mm	Ø 4 mm	50 mm
Ø 2 mm	6 mm	Ø 4 mm	50 mm
Ø 2 mm	5 mm	Ø 6 mm	50 mm
Ø 2 mm	6 mm	Ø 6 mm	50 mm
Ø 2.5 mm	6 mm	Ø 4 mm	50 mm
Ø 2.5 mm	6 mm	Ø 6 mm	50 mm
Ø 3 mm	8 mm	Ø 3 mm	50 mm
Ø 3 mm	8 mm	Ø 4 mm	50 mm
Ø 3 mm	8 mm	Ø 6 mm	50 mm
Ø 3.5 mm	8 mm	Ø 4 mm	50 mm
Ø 3.5 mm	11 mm	Ø 4 mm	50 mm
Ø 3.5 mm	11 mm	Ø 6 mm	50 mm
Ø 4 mm	10 mm	Ø 4 mm	50 mm
Ø 4 mm	10 mm	Ø 6 mm	50 mm
Ø 4 mm	15 mm	Ø 4 mm	75 mm
Ø 5 mm	13 mm	Ø 5 mm	50 mm
Ø 5 mm	13 mm	Ø 6 mm	50 mm
Ø 5 mm	13 mm	Ø 6 mm	75 mm
Ø 5 mm	20 mm	Ø 5 mm	75 mm
Ø 6 mm	15 mm	Ø 6 mm	50 mm
Ø 6 mm	15 mm	Ø 6 mm	75 mm
Ø 6 mm	24 mm	Ø 6 mm	75 mm
Ø 6 mm	24 mm	Ø 6 mm	100 mm
Ø 6 mm	30 mm	Ø 6 mm	100 mm
Ø 6 mm	15 mm	Ø 6 mm	50 mm
Ø 6 mm	15 mm	Ø 6 mm	75 mm
Ø 6 mm	24 mm	Ø 6 mm	75 mm
Ø 6 mm	24 mm	Ø 6 mm	100 mm
Ø 6 mm	30 mm	Ø 6 mm	100 mm
Ø 6 mm	35 mm	Ø 6 mm	150 mm
Ø 7 mm	18 mm	Ø 8 mm	60 mm
Ø 8 mm	20 mm	Ø 8 mm	60 mm
Ø 8 mm	25 mm	Ø 8 mm	75 mm
Ø 8 mm	30 mm	Ø 8 mm	75 mm
Ø 8 mm	32 mm	Ø 8 mm	100 mm
Ø 8 mm	35 mm	Ø 8 mm	100 mm
Ø 8 mm	50 mm	Ø 8 mm	150 mm
Ø 9 mm	22 mm	Ø 10 mm	75 mm
Ø 10 mm	25 mm	Ø 10 mm	75 mm
Ø 10 mm	40 mm	Ø 10 mm	100 mm
Ø 10 mm	50 mm	Ø 10 mm	150 mm
Ø 11 mm	26 mm	Ø 12 mm	50 mm
Ø 12 mm	30 mm	Ø 12 mm	75 mm
Ø 12 mm	45 mm	Ø 12 mm	75 mm
Ø 12 mm	60 mm	Ø 12 mm	100 mm
Ø 13 mm	35 mm	Ø 14 mm	150 mm
Ø 13 mm	45 mm	Ø 14 mm	100 mm
Ø 14 mm	45 mm	Ø 14 mm	100 mm
Ø 14 mm	60 mm	Ø 14 mm	100 mm
Ø 16 mm	45 mm	Ø 16 mm	150 mm
Ø 16 mm	70 mm	Ø 16 mm	100 mm
Ø 18 mm	45 mm	Ø 18 mm	150 mm
Ø 18 mm	50 mm	Ø 18 mm	100 mm
Ø 20 mm	45 mm	Ø 20 mm	100 mm
Ø 20 mm	50 mm	Ø 20 mm	150 mm
Ø 20 mm	65 mm	Ø 20 mm	150 mm
