Carbide front and rear deburrer chamfer cutter 3-12mm
Carbide front and rear deburrer chamfer cutter 3-12mm - Ø3x90°x50mm / Solid carbide is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Guarantee & Quality
Guarantee & Quality
We guarantee our customers the highest quality and longevity.
Shipment
Shipment
Depending on the customer location, shipping takes place after 1-2 business days .
Orders over €130 receive tracking.

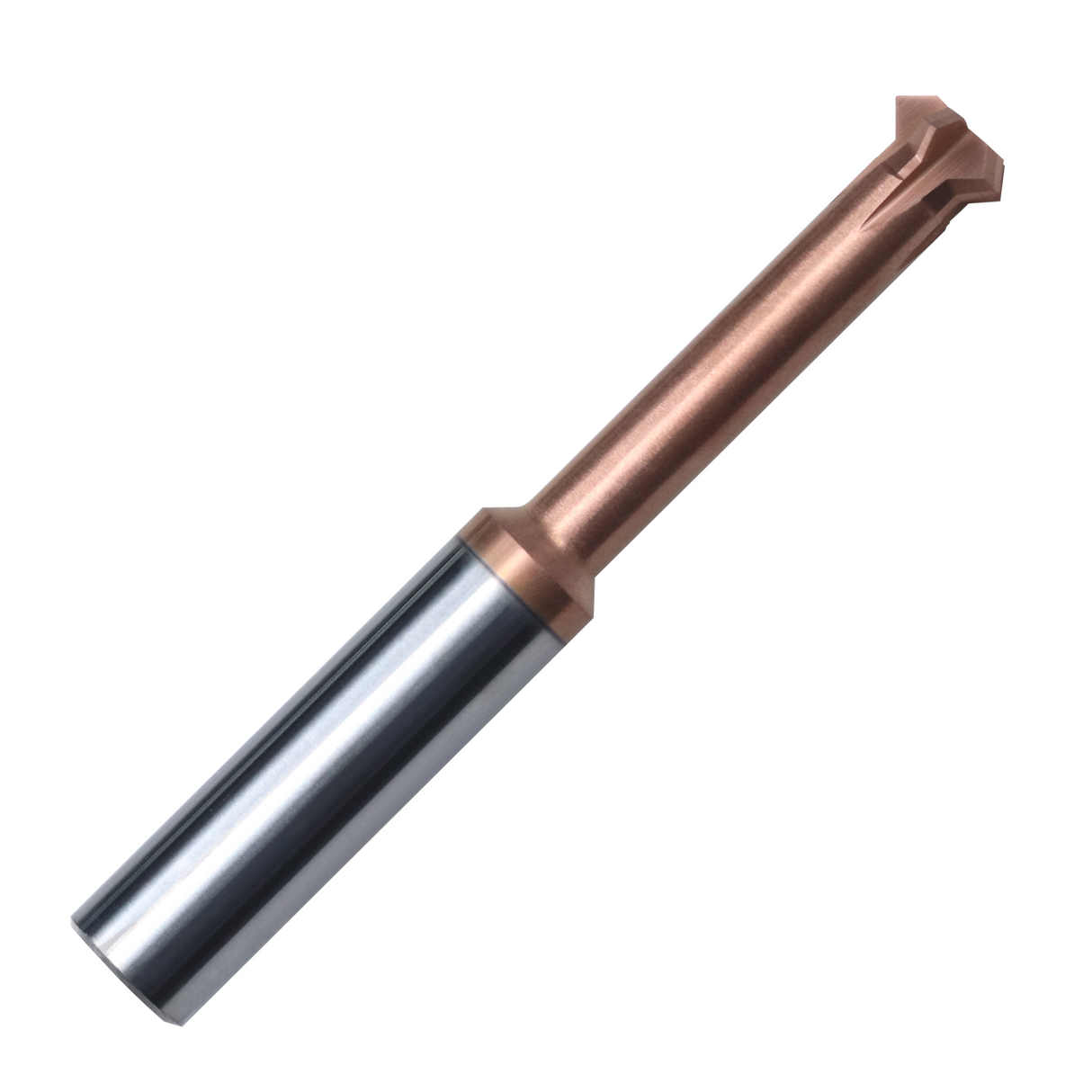

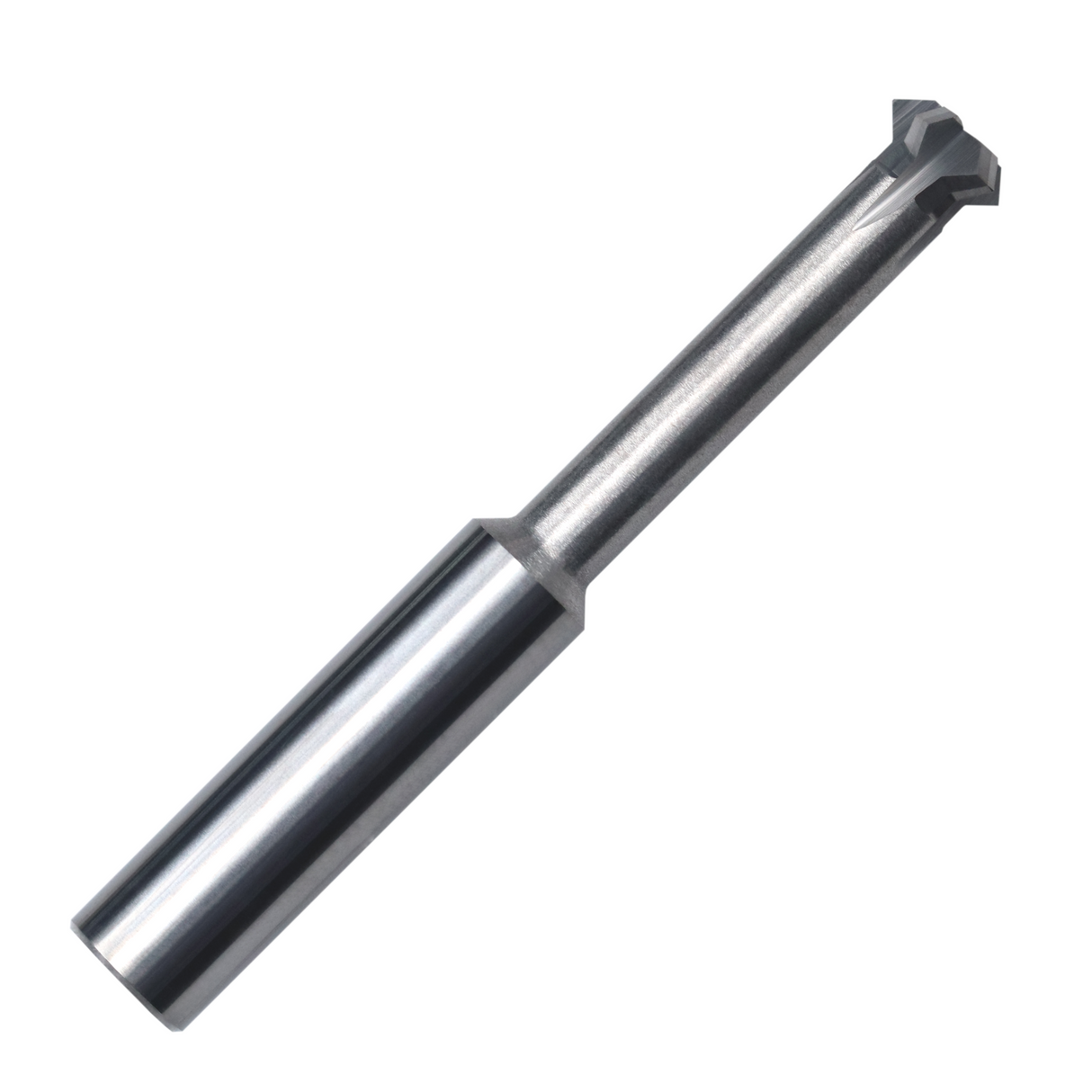

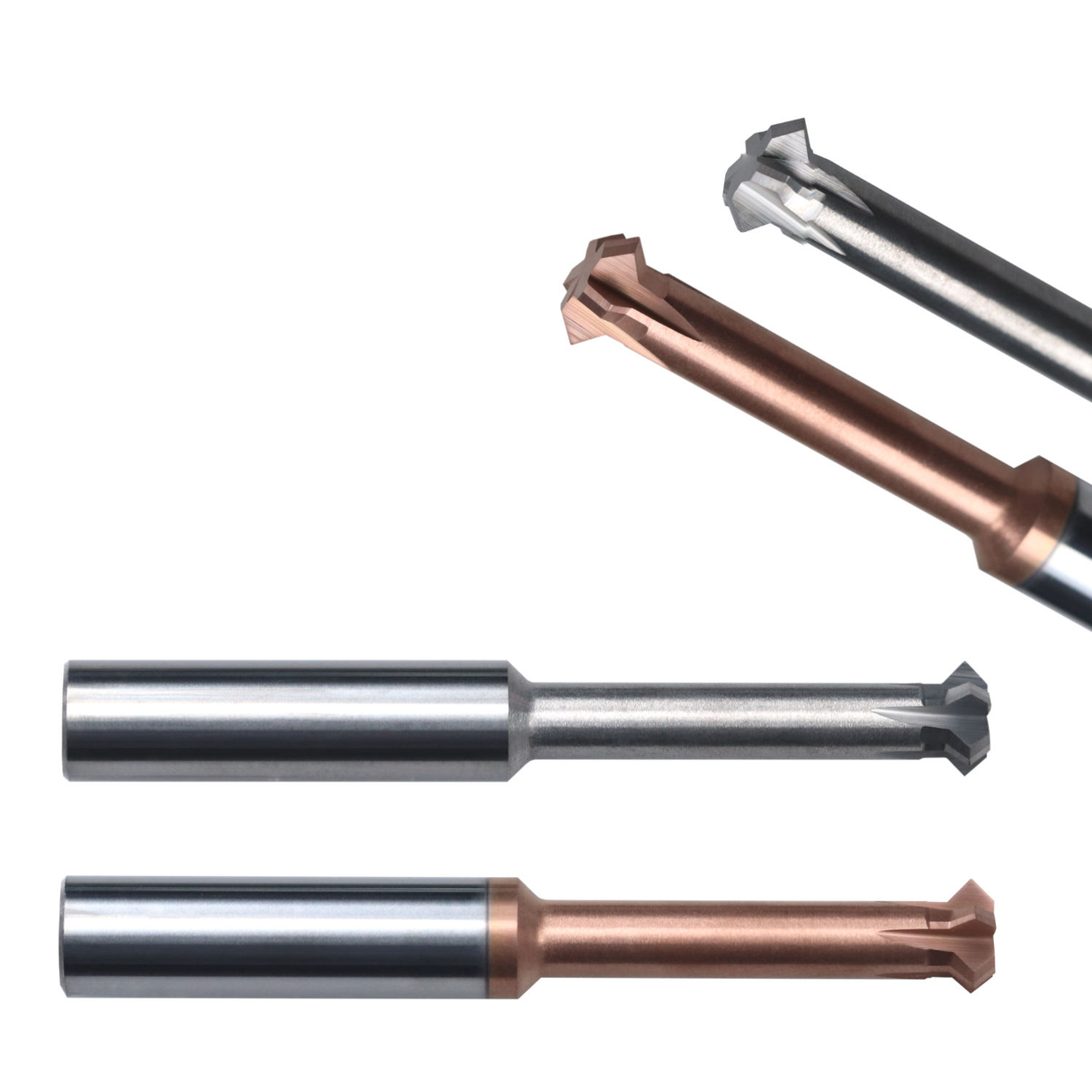

Carbide front and rear deburrer chamfer cutter 3-12mm
Description
Description
Stock number: 259 - 260
- double ground angle 90°
- Corner rounding r0.2
- long shaft and long free grind
- The front and back are deburred in one clamping operation
- Number of teeth 3: Ø3 - Ø6
- Number of teeth 4: Ø8
- Number of teeth 5: Ø10
- Number of teeth 6: Ø12

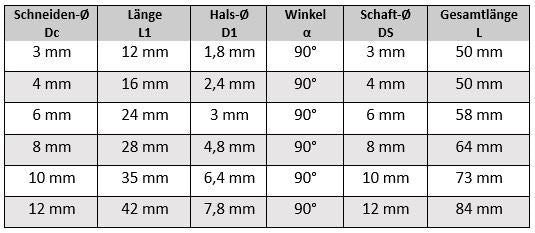

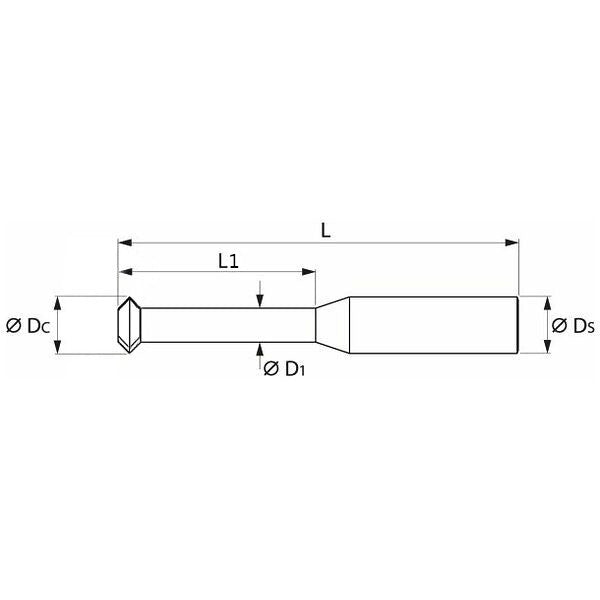

Dimensions:
|
Cutting Ø DC |
length L1 |
Neck Ø D1 |
angle α |
Shank Ø D.S |
overall length L |
|
3mm |
12mm |
1.8mm |
90° |
3mm |
50mm |
|
4mm |
16mm |
2.4mm |
90° |
4mm |
50mm |
|
6mm |
24mm |
3mm |
90° |
6mm |
58mm |
|
8mm |
28mm |
4.8mm |
90° |
8mm |
64mm |
|
10mm |
35mm |
6.4mm |
90° |
10mm |
73mm |
|
12mm |
42mm |
7.8mm |
90° |
12mm |
84mm |
Cutting data Vc (m/min) VHM:
Cutting data Vc (m/min) VHM-TiSiN:
