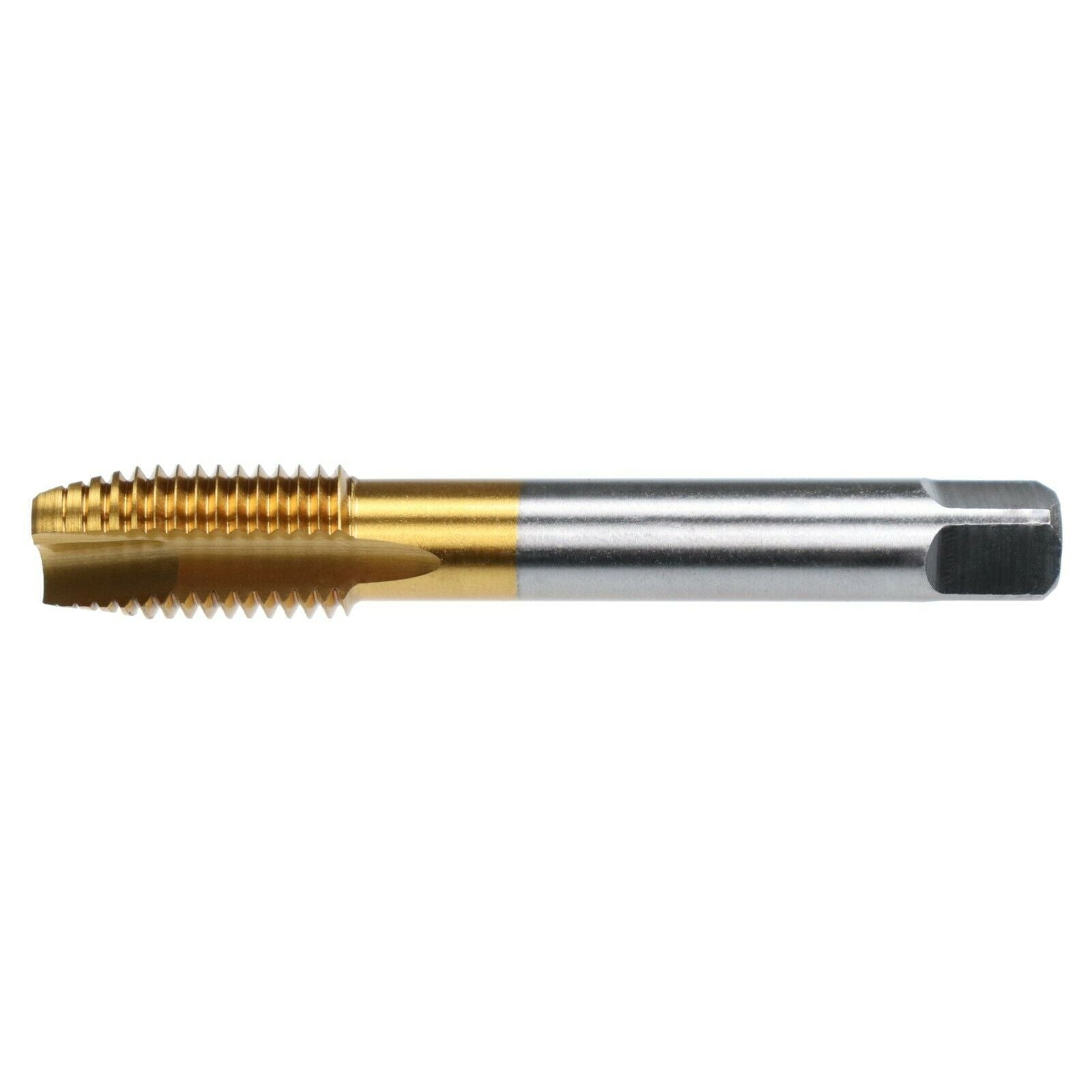

Machine tap passage
These through taps bring the chips out downwards so that the pre-drilled hole has to go completely through the material.
The tolerance is ISO2 / 6H.
For steels (up to 1000 N / mm²), cast and non-ferrous metals
HSSEFor steels and VA, very universal tap with a long service life

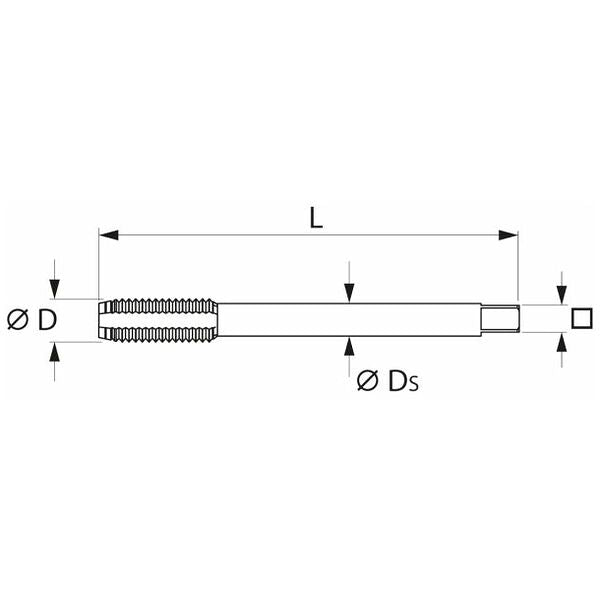

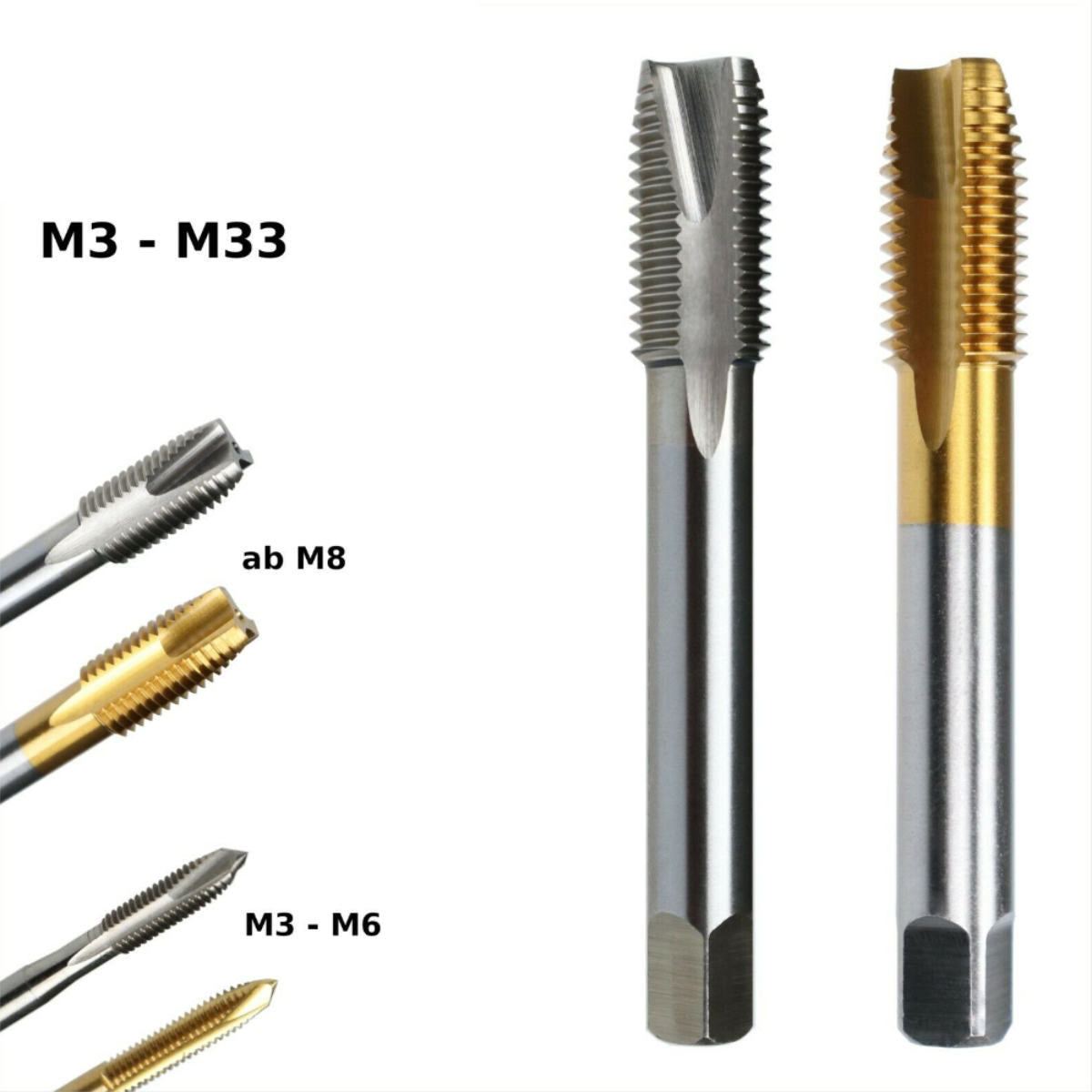

Execution:DIN 371: With point (M3 - M6) and thick shaft (M3 - M10)
DIN 376: Without point (M8 - M30) and thinner shaft as thread (M12 - M30)
